LC PC / UPC OM3 Multimode Fiber Optic Adapter Connector Without Flange

Product Categories
Wuhan Geehe Optical Communication Co.,ltd
Contact Now

LC PC / UPC OM3 Multimode Fiber Optic Adapter Connector Without Flange

  • 1
  • 2

Brand Name : Geehe or OEM

Model Number : Adapter---Multimode 001

Certification : ROHS,ISO9001,ISO 14001

Place of Origin : Wuhan, China

MOQ : 100 pcs

Price : Negotiable

Payment Terms : L/C, T/T, D/P, D/A, Western Union

Supply Ability : 2,000pcs per day

Delivery Time : 2-3 Working days to delivery

Packaging Details : plastic box with 24 pcs, outer with thick cartons

Model Name : Fiber Optic Adapter Connector

Mode Type : LC Adapter

JALCSCDFL-AQ SCtype Type:: LC Adapter Optional Adapter : SC,LC,FC,ST,MU,MTRJ,MTP/MPO,DIN

Surface Polishing : PC,UPC,APC

Color : Blue, Beige, Aqua, Green

Sleeve : Zirconia

Fiber Mode : Singlemode; Multimode; OM3; OM4;OM5

Return Loss : > 50db

Core : Duplex

Application : FTTx,LAN,CATV,Telecom, (Data Center)

Contact Now

LC PC/UPC OM3 Multimode Fiber Optic Adapter Connector Without Flange

Brief Introduction

LC Duplex Adapters are versatile and fit most patch panels, wall-mounts, racks, and adapter plates.

Our LC Duplex Adapters fit standard Simplex SC cutouts for patch panels, cassettes, adapter plates, wall-mounts and more. These adapters have the most common footprint, and as such will fit universally into any company’s product which adheres to current fiber optic standards.

Product Features

  • Fast and easy connection
  • Lightweight and durable plastic body
  • Integrated mounting clip allows for easy snap-in installation
  • Ceramic alignment sleeve for precision mating
  • Color coded for rapid fiber mode identification, reduction of errors and mode mismatch.
  • Reduced signal loss
  • Adapters ship with standard plug-style dust caps

Specification

parameter SC, FC, ST, LC, MU, ST
End-face APC/UPC/PC
Mode Single mode & multi mode
Sleeve Zirconia ceramic, phosphor bronze
Insertion loss (dB) ≤0.2
Exchangeability (dB) ≤0.2 (connect randomly)
Tensile strength (dB) ≤0.2 (0~100N)
Vibration (dB) ≤0.2(5~50Hz, 1.5mm amplitude)
Temp. Range (dB) ≤0.2(-40~80℃, 21 cycles)



Ordering Information:
EX: OFA-D-FC-APC-Z-N-N

OFA -X -XX -XX -XX -X -X

S: simplex

D: duplex

SC

FC

ST

LC

MU

ST

APC

UPC

PC

Z: Zirconia ceramic,

P: phosphor bronze

W: with flange

N: no flange

W: with shutter

N: no shutter
Fiber mode Connector Type Connector Type Sleeve Flange type Shutter type


Parameter Unit Value
Connector / FC ST SC LC
Sleeve / Zirconia
Insertion Loss dB ≤0.20(Plug≤0.30)
Repeatability Time ＞1000

Application

1. CATV

2. Telecommunication networks

3. Test equipment

4. Metro

5. Local Area Networks(LANs)

6. Data processing networks

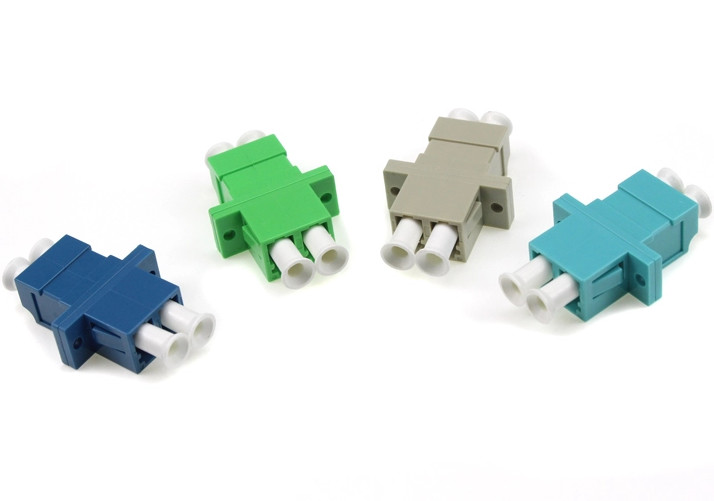

Products Picture

LC PC / UPC OM3 Multimode Fiber Optic Adapter Connector Without Flange
