Male To Female SC LC Optical Fiber Attenuator Fixed Type Or Plug Type

Brand Name : Geehe

Model Number : Geehe-AT006

Certification : ISO9001,14001 Certificates

Place of Origin : Wuhan,China

MOQ : 10 pcs

Price : Negotiate

Payment Terms : T/T, L/C, D/A, D/P, Western Union

Supply Ability : 2,000 pcs/ 8 hours.

Delivery Time : Normal working 3 days,or based on customer's requirements

Packaging Details : Individual PE box and thick carton

Model name : Fiber Optic Attenuators

Fiber Type : Simplex,Duplex

Connector : LC UPC / LC APC

Ferrule : Zirconia/Ceramic, Metal

Sleeve Material : Ceramic sleeve

Color : Red, White, Black, Yellow Color

Structure : Fixed, Female To Male, Variable, In-line

Attenuation Tolerance : 5dB ± 0.5dB, 10dB ±1dB ,others

Wavelength : 1260 to 1650nm

Certificate : ISO9001,14001,RoHS

Contact Now

Male To Female SC,LC Fixed Type Or Plug Type Fiber Optic Attenuators

Product Description:

Geehe attenuators are a very high quality design using doped fiber to attenuate the signal. Our singlemode attenuators offer a operating wavelength range of 1250nm to 1600nm, covering both the common 1310nm and 1550nm operating wavelengths.

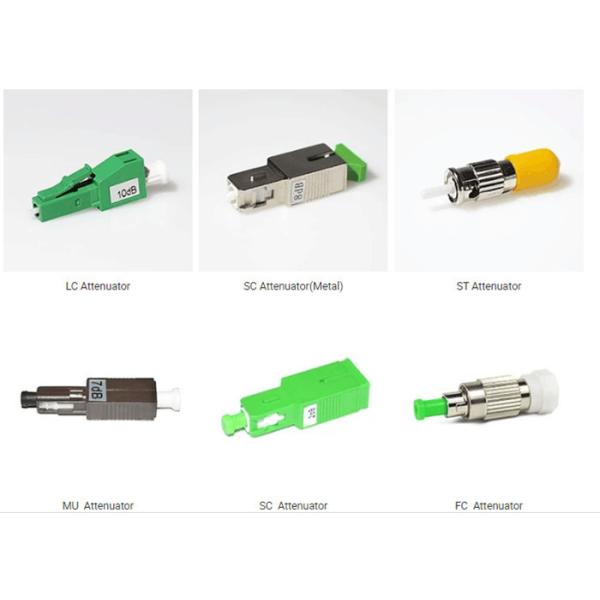

Maximum transmission power is typically one watt. We stock attenuators for the following fiber optic connector types: ST, SC, SC/APC, FC, FC/APC, LC, LC/APC, MU. Other connector type attenuators are available upon special order. We stock most values between 1dB and 25dB for each of these attenuator types.

Feature:

  • Fully compatible with SC fiber optic connector
  • Low PDL and Low back reflection
  • High power endurance
  • Wavelength independent
  • Precise control of attenuation range
  • Simple manipulation
  • Highly Reliable Physical Contact Connectors
  • Available in single-mode or multi-mode
  • Fixed Attenuation value customized from 1-30db

Application:

1. Telecommunication networks
2. Data Networks
3. Vidio & CATV

Technology Specifications:

parameter SC, FC, ST, LC, MU, ST
End-face APC/UPC/PC
Mode Single mode & multi mode
Sleeve Zirconia ceramic, phosphor bronze
Insertion loss (dB) ≤0.2
Exchangeability (dB) ≤0.2 (connect randomly)
Tensile strength (dB) ≤0.2 (0~100N)
Vibration (dB) ≤0.2(5~50Hz, 1.5mm amplitude)
Temp. Range (dB) ≤0.2(-40~80℃, 21 cycles)

Ordering Information:

EX: OFA-D-FC-APC-Z-N-N

OFA -X -XX -XX -XX -X -X

S: simplex

D: duplex

SC

FC

ST

LC

MU

ST

APC

UPC

PC

Z: Zirconia ceramic,

P: phosphor bronze

W: with flange

N: no flange

W: with shutter

N: no shutter
Fiber mode Connector Type Connector Type Sleeve Flange type Shutter type

Product Details:

Male To Female SC LC Optical Fiber Attenuator Fixed Type Or Plug Type
