Duplex Fiber Optic Patch Cord 2F 2mm Single Mode For Metro / WANs

Product Categories
Wuhan Geehe Optical Communication Co.,ltd
Contact Now

Duplex Fiber Optic Patch Cord 2F 2mm Single Mode For Metro / WANs

  • 1
  • 2

Brand Name : Geehe or OEM

Model Number : Single Mode Patch Cord

Certification : ROHS, REACH, UL, ISO

Place of Origin : Wuhan, China

MOQ : 100 PCS

Price : Price Negotiation

Payment Terms : T/T, Western Union, L/C

Supply Ability : 10,000 pcs per month

Delivery Time : 3-5 days

Packaging Details : plastic zip bag and carton

Material : Single Mode

Fiber type : Duplex

Connector 1 : LC/UPC

Connector 2 : SC/APC

Length : Customized

Diameter : 0.9/1.6/1.8/2.0/3.0mm

Contact Now

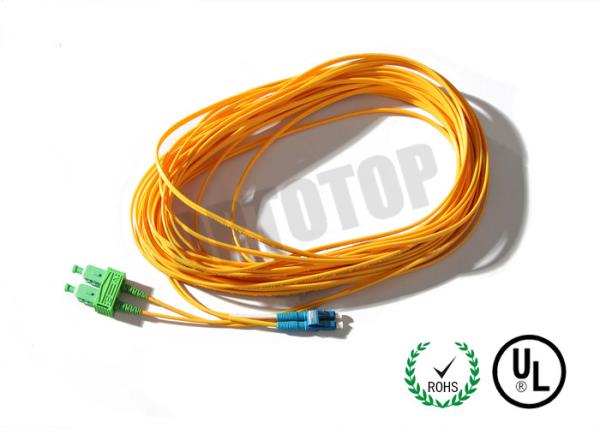

Duplex LC/UPC-SC/APC Fiber Optic Patch Cord 2F 2mm Single Mode

LC,SC,FC,ST,MPO, fiber optic patch cord
OEM patch cords
Telcordia GR-326-4 core compliant
CE, Rohs, UL, REACH.
High quality and fast delivery

Small trail order is avalable

Product Description

Fiber optic patch cord ,Precise connector, Customized length, Excellent mechanical capability, insertion loss<0.2dB, Good durability and exchangeability, Compliant with TIA/EIA and IEC standard

Application

CATV

Active dvice termination

Telecommunication networks

Metro

Local Area Networks(LANs)

Data Processing networks

Test Equipment

Premise installations.

Wide Area Networks(WANs)

Feature

Low insertion loss and back reflection loss

Good echangeabilityGood Durability

High temperature stability

Specifications

Parameter Fiber Connector
Operating wavelength(nm) Multi-Mode Single Mode
Fiber type 850/1310 1310/1550 980/1060
Insertion loss(dB) ≤0.2 ≤0.2 ≤0.4
Return loss(dB) UPC ≥40 ≥50 ≥50
APC / ≥50 ≥50
Repeatability(dB) ≤0.1 /
Changeability(dB) ≤0.2
Durability ≥1000
Operating tempearture(℃) -40 ~ +85

Ordering Information

OFC X- XX- XX- XX XX- XX-

S:Simplex

D:Duplex

SA:SC/APC

SC:SC/UPC

MU:MUUPC

..00:no connect

SA:SC/APC

SC:SC/UPC

MU:MUUPC

00:no connect

09:0.9mm

20:2.0mm

30:3.0mm

0:G652D

1:G657A

2:50/125

3:62.5/125

4:others

0.5:0.5m

1.0:1.5m

10:10.0m:
Connector Type Connector Type Cable Die, Fiber Type Length

EX: OFC -S-SA-SA-09-1-0.5

Duplex Fiber Optic Patch Cord 2F 2mm Single Mode For Metro / WANs

Advantage

1. Fast delivery
2. Competitive price

3. Professional product and technical support
4. Prompt answer for any question or inquiry
5. Reliable quality, OEM service available

6. Free sample provided

7. Longtime warranty
