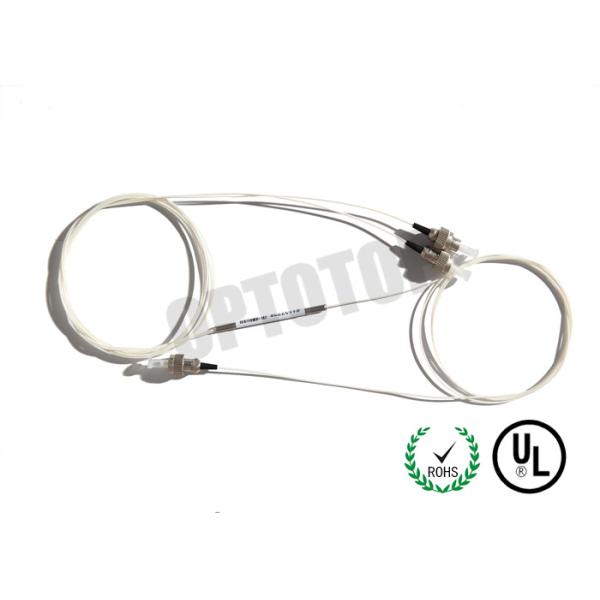

Single Mode Fiber Optic Cable Splitter 1m Length High Reliability

Brand Name : Geehe or OEM

Model Number : Dual Window Fiber Coupler

Certification : ROHS, REACH, UL, ISO

Place of Origin : Wuhan, China

MOQ : 10 PCS

Price : Price Negotiable

Payment Terms : T/T, Western Union, L/C

Supply Ability : 300,000pcs per month

Delivery Time : 7-10 days

Packaging Details : Blister box and carton

Mode : Single Mode

Configuration : 1x2

Operating Wavelength : 1310/1550nm

Coupling Ratio : 1:99

Fiber Type : 0.9mm

Fiber Length : 1m

Connect Type : FC/UPC-FC/UPC

Package Type : B

Contact Now

Fbt Coupler Single Mode 1x2 1310&1550nm 1:99 FC/UPC 0.9mm

Key Features


Low excess loss
Various Coupling Ratio
Compact Size
High Stability and Reliability
Mini sizes




Specifications

Parameter P A
Operating wavelength (nm) 1310&1550
Operating bandwidth (nm) 1310 ± 40nm,1550 ± 40nm
Fiber Type(dB) Corning G652D OR Corning G657 A1
Insertion loss (dB) 50:/50 ≤3.3 ≤3.5
40/60 3.70~4.40≤2.5 3.50~4.60/≤2.8
30/70 5.00~5.60/≤1.8 4.90~6.10/≤2.1
20/80 6.80~7.40/≤1.2 6.50~7.70/≤1.2
10/90 9.60~10.50/≤0.6 8.80~11.40/≤0.8
5/95 12.70~13.50 /≤0.4 12.05~14.05/≤0.5
3/97 14.60~15.50/≤0.3 13.60~16.05/≤0.4
2/98 16.60~17.90/≤0.25 15.60~18.20/≤0.3
1/99 19.20~20.80/≤0.2 18.80~21.40/≤0.25
PDL (dB) ≤0.1 ≤0.15
Return loss(dB) ≥50 ≥45
Directivity (dB) ≥55
Operating temperature (℃) -40 ~ +85

* The above specification is without connector

* Other specifications can be made on customer request.

Package Dimensions & Pigtail Style

Package Dimensions
Package A(Mini) 2.4mm x 35mm stainless steel tube
Package A 3.0mm x 48mm stainless steel tube
Package B 3.0mm x 55mm stainless steel tube
Package C 90mm x16mm x 9mm case
Pigtail Style
Package A 250μM bare fiber
Package B 900μM loose tube
Package C 900μM loose tube or 2mm/3mm cable

*Other package dimensions can be made on customer request.

Description


The Single Mode Broadband Fiber Coupler based on Two Parallel Fiber fused bi-conical taper technology. It has single or multi window. The devices are designed and manufactured to meet Telcordia GR-1209-CORE requirements and RoHS compliant.

Ordering Information

WBC- x- X2- 35- XX- X- XX- xx- x

P:Premium

A:Grade A

X:

On request

12:1X2

22:2X2

35:1310/

1550nm

01: 01:99

02: 02:98

……

50: 50:50

1: 1 meter

x: on request

25:250μM Fiber

09:900μM loose Fiber

SC:SC/UPC

SA:SC/APC

......

00:no connect

A: A

B: B

C:C
Grade Port number

Operation

Wavelength

Coupling

Ratio

 Fiber length Fiber type Connect Type Dimension

EX:WBC-P-12-35-50-1-09-00-B

Applications

Long-haul Telecommunications
CATV
FTTH
Local Area Network
