1 X 2 0.9 mm Single Mode WDM Fiber Optic For Telecom , 1480 / 1550nm Operation Wavelength

Name: 1 X 2 09 mm Single Mode WDM Fiber Optic For Telecom 1480 1550nm Operation Wavelength
Brand: Geehe or OEM
Price: 1 USD

Wholesale 1 X 2 0.9 mm Single Mode WDM Fiber Optic For Telecom , 1480 / 1550nm Operation Wavelength from china suppliers

Brand Name : Geehe or OEM

Model Number : WDM Single Mode

Certification : ROHS, REACH, UL, ISO

Place of Origin : Wuhan, China

MOQ : 10 PCS

Price : Price Negotiable

Payment Terms : T/T, Western Union, L/C

Supply Ability : 300,000pcs per month

Delivery Time : 7-10 days

Packaging Details : Blister box and carton

Configuration : 1x2

Fiber Material : Single Mode

Operating Wavelength : 1480&1550nm

Connector : LC/UPC

Fiber Type : 0.9mm

Fiber Length : On Request

Contact Now

Single Mode WDM Operation Wavelength 1480/1550nm 1X2 0.9mm LC/UPC

EX: WDM-P-12-45-1-09-LU-C

Applications

Long-haul Telecommunications

CATV FTTH

Local Area Network

WDM and DWDM systems channel balancing

Optical power equalization

Test and instrument

Optical transmission systems

Key Features

Low excess loss

Various Coupling Ratio

Compact Size

High Stability and Reliability

Mini sizes

Product Description

WDM is the technology to separate different wavelengths of light at the receving end in optical signal transmission.

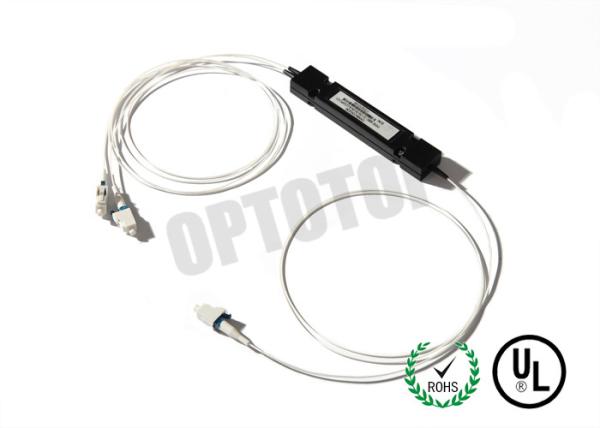

1 X 2 0.9 mm Single Mode WDM Fiber Optic For Telecom , 1480 / 1550nm Operation Wavelength

Specifications

Parameter	980/1550nm WDM or 1060/1550nm WDM					1310/1550nm WDM		1480/1550nm WDM
Fiber Type(dB)	Corning HI1060flex OR OFS BF05635-02					SMF-28e
Operating wavelength (nm)	980 & 1550		1060&1550			1310&1550		1480&1550
Operating bandwidth (nm)	± 10/20					±15

Grade	P	A		P	A	P	A	P	A
Insertion Loss(dB)	≤0.15	≤0.25		≤0.30	≤0.40	≤0.2	≤0.3	≤0.3	≤0.35
Isolation(dB)	≥20	≥18		≥20	≥18	≥25	≥18	≥25	≥18
PDL (dB)	≤0.05	≤0.1		≤0.05	≤0.1	≤0.05	≤0.1	≤0.1	0.1
Directivity (dB)	≥55
Operating temperature (℃)	-40 ~ +85

The above specification is without connector

Other specifications can be made on customer request.

Ordering Information

WDM-

N-

XX-

X-

XX-

…

95:980&1550nm

135:1310&1550nm

65:1060&1550nm

45:1480&1550nm

01: SMF-28e

02:HI1060flex,

03: OFS BF05635-02

1: 1 meter

x: on request

25:250μM Fiber

09:900μM loose Fiber

20: 2mm cable 30: 3mm cable

SC:SC/UPC

SA:SC/APC

.00:no connect

A: A

B: B

C:C

Grade

Operation Wavelength

Fiber type

Fiber length

Pigtail type

Connect Type

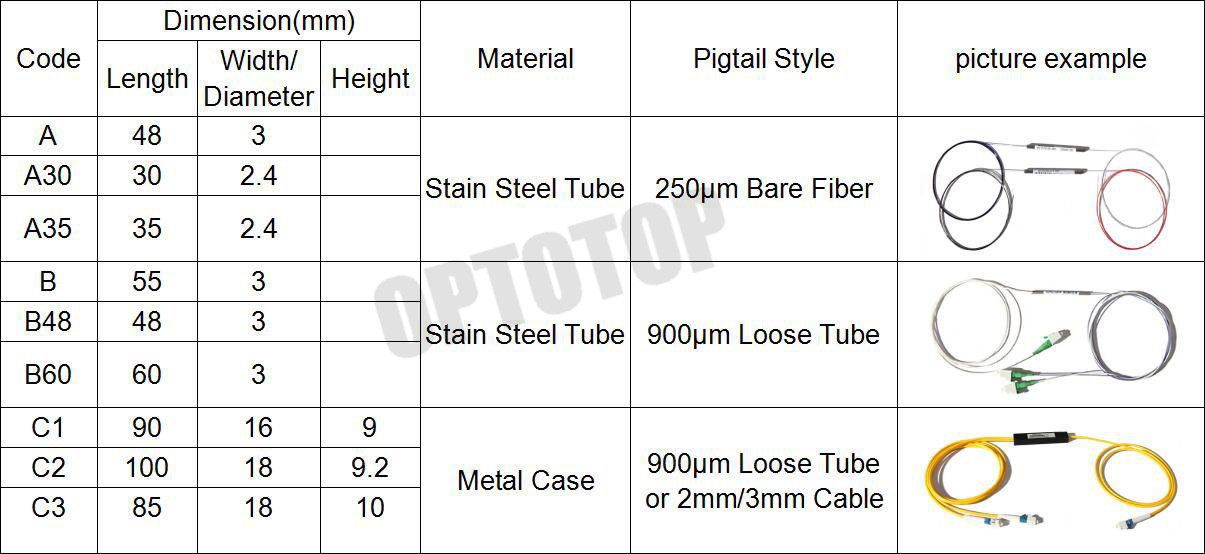

Dimension

EX: WDM-P-12-45-1-09-LU-C

1 X 2 0.9 mm Single Mode WDM Fiber Optic For Telecom , 1480 / 1550nm Operation Wavelength
